Photogrammetry
The science of obtaining accurate 3D measurements from photos

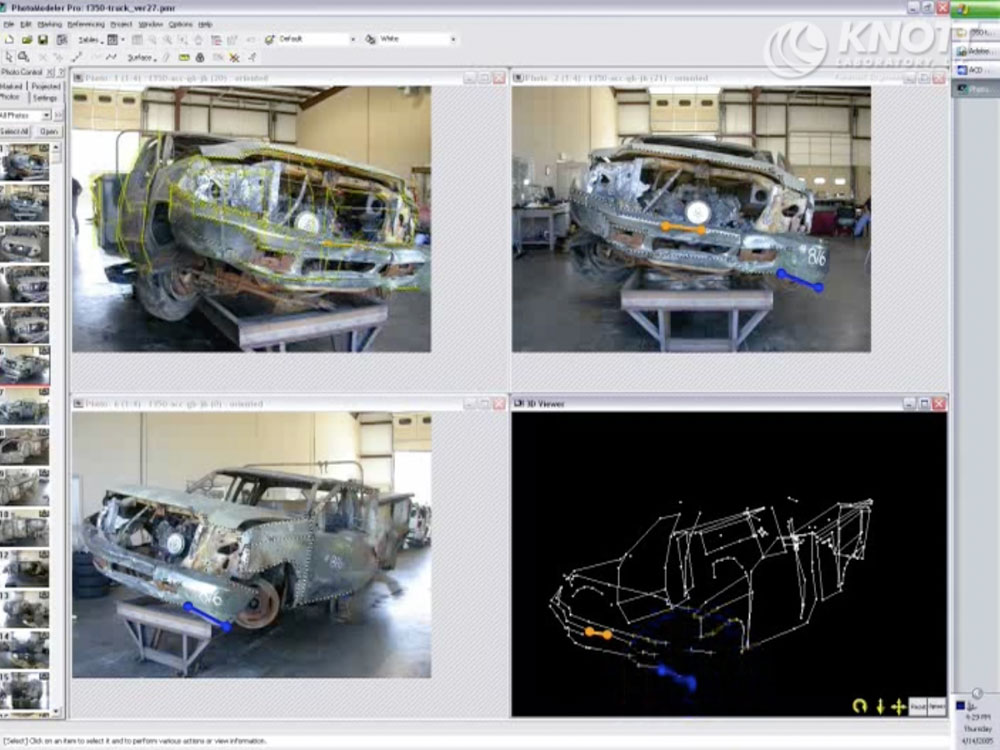

Photogrammetry places 2D photographs into a 3D space using the fundamental principle of triangulation. Key points within a photograph can be matched to the same points from other photographs, aerial imagery, a 3D laser scan, or an accurate 3D model to determine the orientation and placement of photographs. This process utilizes the information the photographs contain to get an accurate representation of 3D space. For example, if an accident reconstructionist or engineer wants to find out how much deformation a vehicle has sustained, Photogrammetry can get the precise data the engineer needs to strengthen his or her analysis and opinion.

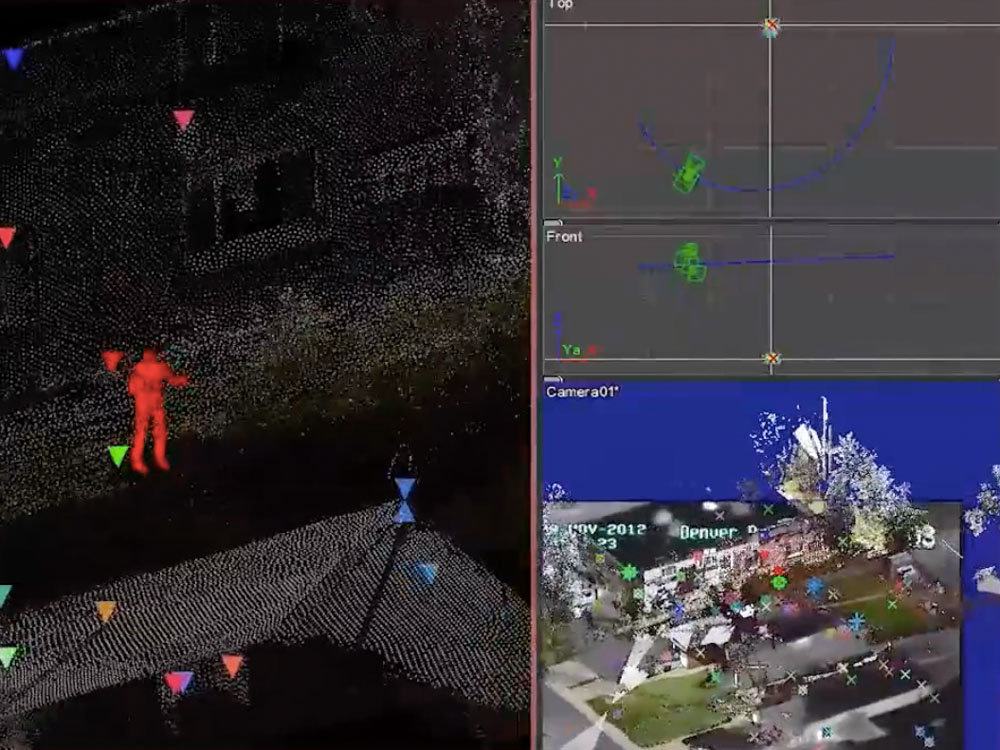

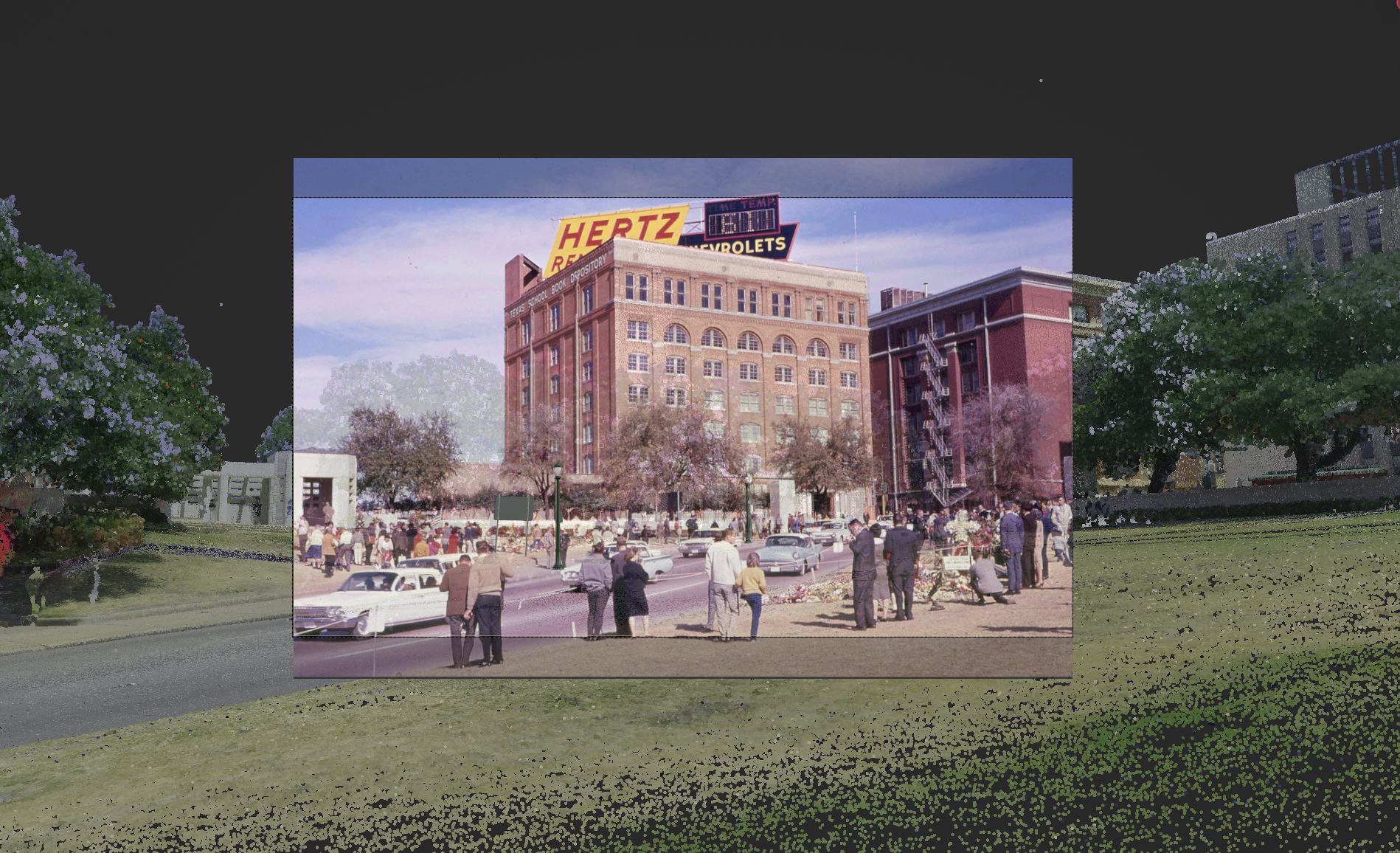

By matching our 3D data to data in photographs, our team can determine the position of vehicles, the location of important evidence, and measurements of evidence, such as tire marks or gouge marks. This technique is essential in obtaining accurate information to prepare engineering analysis and demonstrate the accuracy of our data. Photo matching can also be used to create more realistic animations by animating 3D vehicles and objects over photographs.
